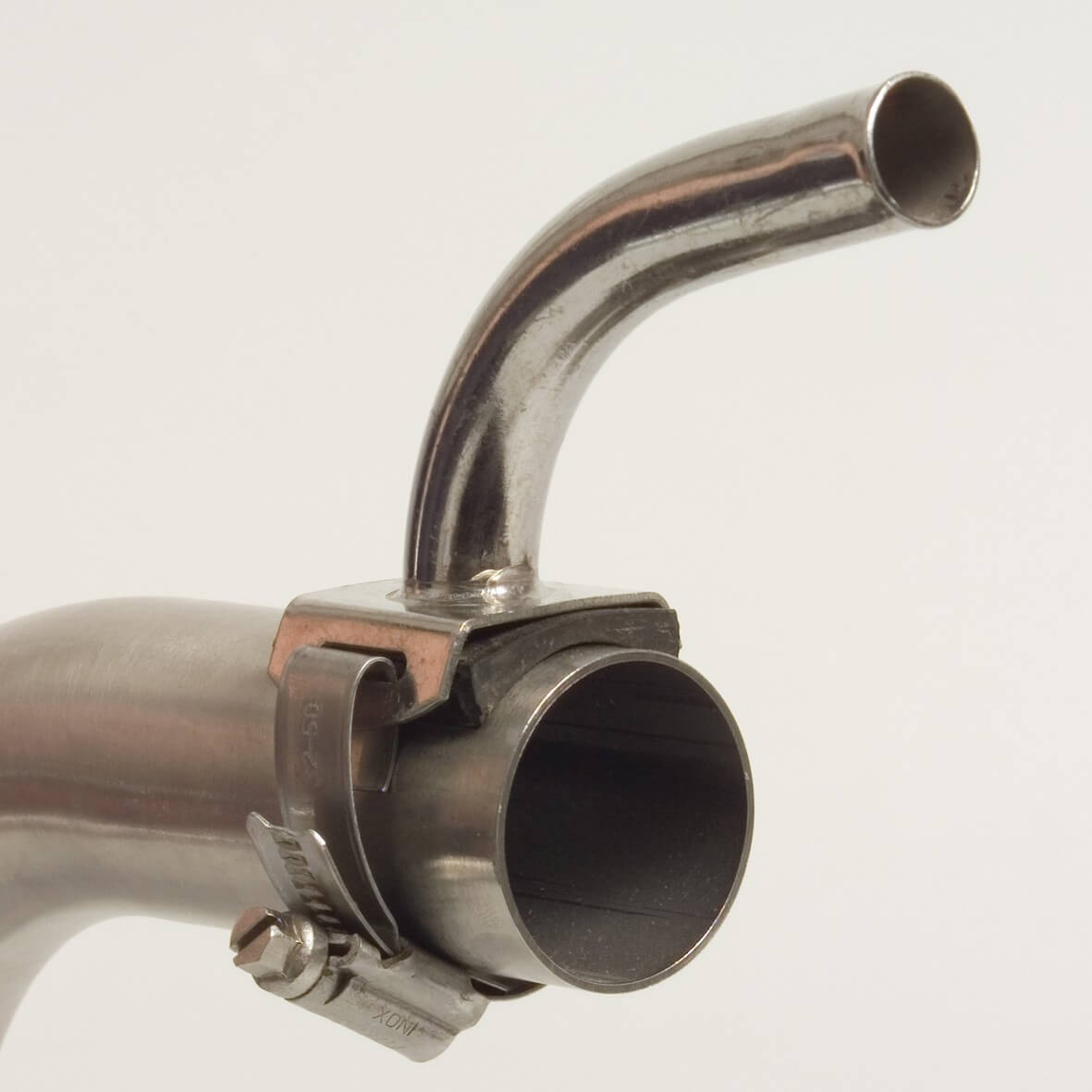

CURVED MILK INLET 45°/90° WITH ADJUSTABLE HOSE CLAMP
Material: Stainless Steel
Inlet orientation can be manufactured as per requirement – left, right, parallel and perpendicular to milk tube.
Includes Gasket
| CURVED MILK INLET 45°/90° WITH ADJUSTABLE HOSE CLAMP |
||||||
| Model | Inlet Inside Diameter | Inlet Outside Diameter | Home Clamp Size (mm) | |||
| MIC-1614 (30-55) | 14 mm | 16 mm | 30-55 mm | |||
| MIC-1816 (30-55) | 16 mm | 18 mm | 30-55 mm | |||
| MIC-2220 (30-55) | 20 mm | 22 mm | 30-55 mm | |||
| MIC-2523 (30-55) | 23 mm | 25 mm | 30-55 mm | |||
| MIC-1614 (60-80) | 14 mm | 16 mm | 60-80 mm | |||
| MIC-1816 (60-80) | 16 mm | 18 mm | 60-80 mm | |||
| MIC-2220 (60-80) | 20 mm | 22 mm | 60-80 mm | |||
| MIC-2523 (60-80) | 23 mm | 25 mm | 60-80 mm | |||
| Custom Sizes Available | ||||||
